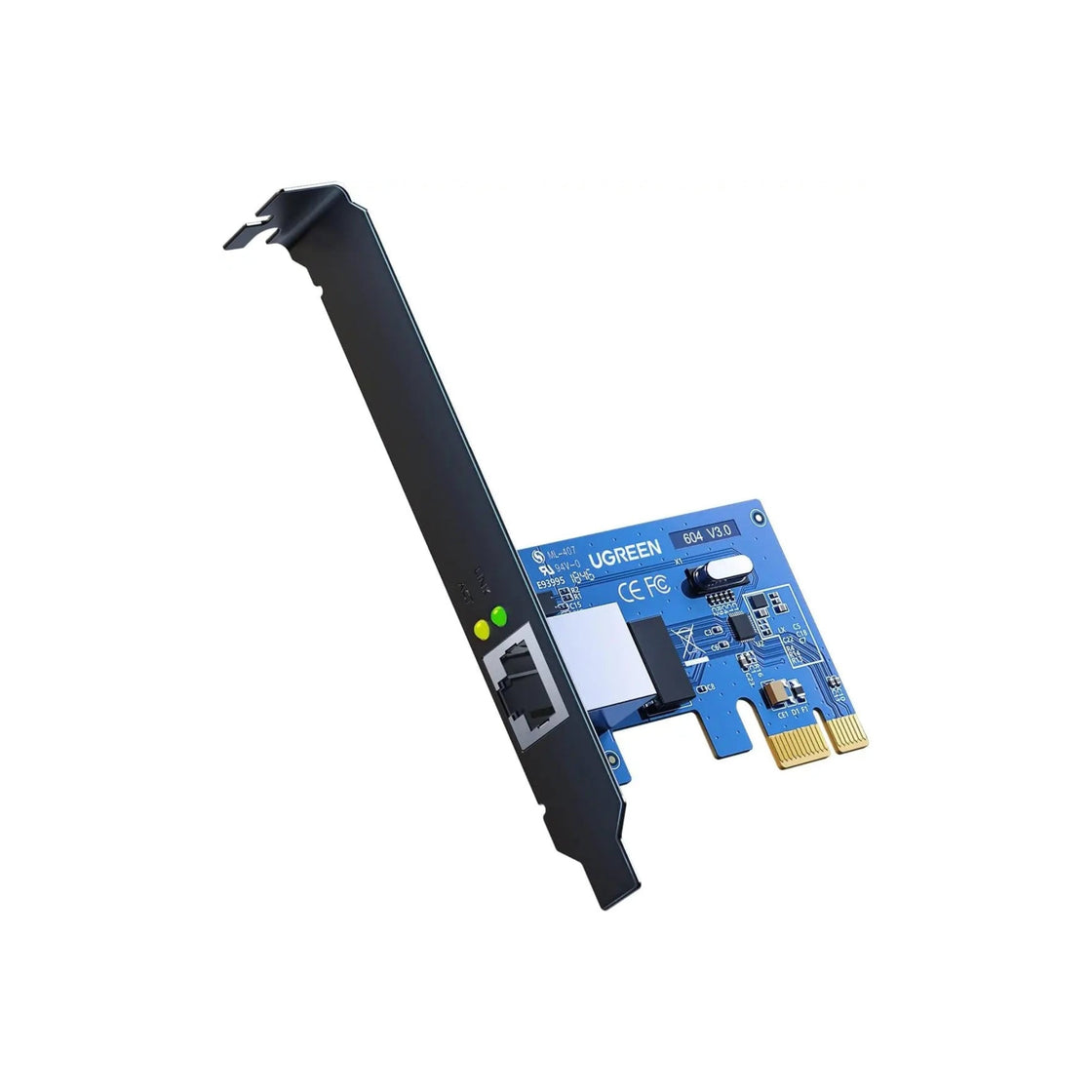

UGREEN PCI Express 1000Mbps PCIe Network Card (30771)
Provides Gigabit Ethernet Connectivity to Mac Pro Towers and Windows PCs
A simple way to add or expand Gigabit Ethernet connectivity to any compatible computer.it is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, and embedded applications.
Wide Application
1.PCI Express Gigabit Ethernet would be widely used on Motherboard, Notebook, or Embedded system.
2. Add an Ethernet port to a workstation or server computer, for redundancy or bridging.
3. Add networking capabilities to an old system with no Ethernet port.
Hardware
- Integrated 10/100/1000M transceiver
- Auto-Negotiation with Next Page capability
- Supports PCI Express 1.1
- Supports pair swap/polarity/skew correction
- Crossover Detection & Auto-Correction
- Supports 1-Lane 2.5Gbps PCI Express Bus
- Embedded OTP memory
- Transmit/Receive on-chip buffer support
- Supports PCI MSI (Message Signaled Interrupt) and MSI-X
- Supports 25MHz or 48MHz Oscillator
- Supports power down/link down power saving/PHY disable mode
- Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts
- Supports LTR (Latency Tolerance Reporting) and OBFF (Optimized Buffer Flush/Fill)
- Supports 16-set 128-byte Wake-Up Frame pattern exact matching
- Supports Microsoft WPD (Wake Packet Detection)
Notes
1. Power Supply:
(1). Only support 5v power supply. Do NOT connect 12V power source.
(2). Do NOT insert the sata power supply cable into our PCI-E card in the reverse direction.
2. Do NOT install this PCI-E card when the computer is on.
3. Please download driver before using.
4. Device Manager-Network Adapter-Realtek PCIe Family Cotroller#2.
5. Do NOT support Linux or Mac OS.
6. Important Note: Only work with PCI-E slot, Not for a PCI Slot.
